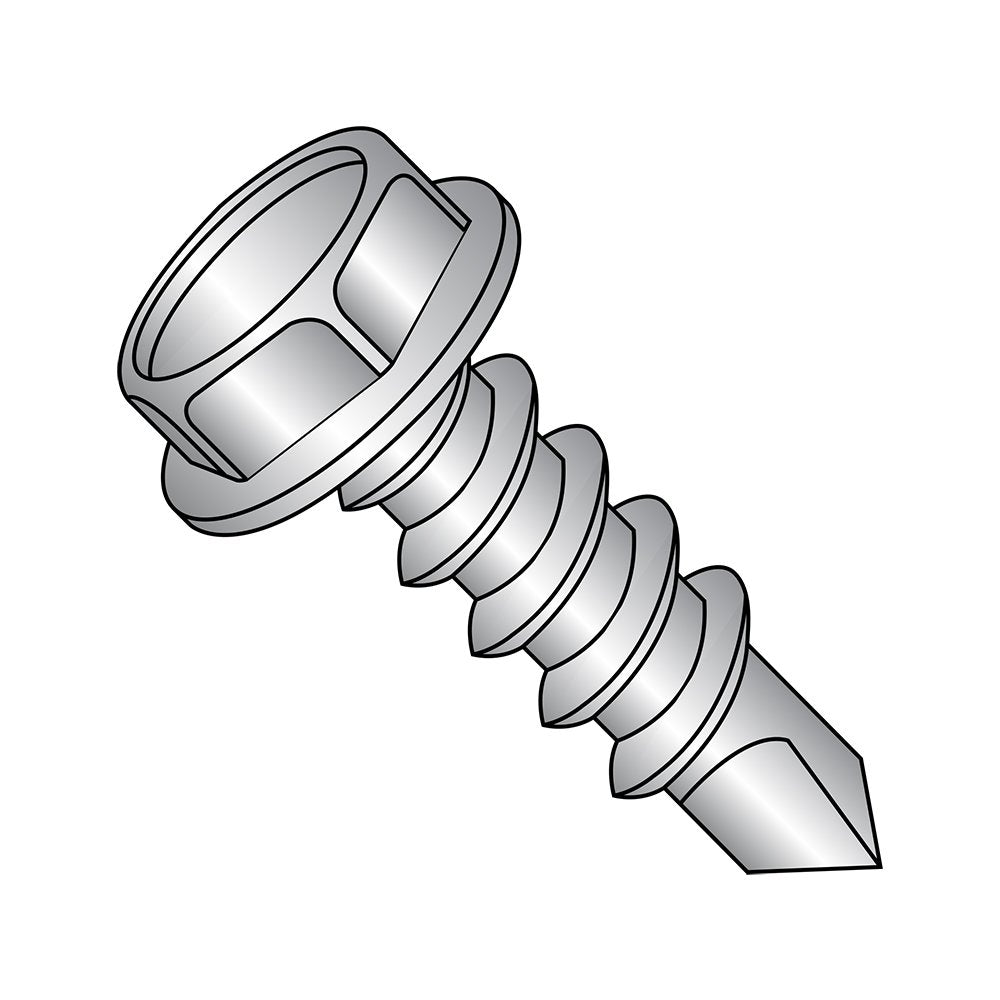

Small Parts 1412KW410 410 Stainless Steel Self-Drilling Screw, Plain Finish, Hex Washer Head, Hex Drive, #3 Drill Point, 1/4'-14 Thread Size, 3/4' Length (Pack of 25)

The 410 stainless steel self-drilling screw with plain finish has a hex washer head and a hex drive. The 410 stainless steel material offers high strength and hardness ratings, and resists corrosion in mild environments. The material is magnetic. The hex washer head has six flat sides that wrenches can grip to turn from the side, enabling use when there is no space above the head for a screwdriver. The flange acts like a washer to increase the fastener's bearing surface and distribute the clamping force over a larger area, providing grip and reducing damage to mating surfaces.Self-drilling screws, a type of self-tapping screw, are threaded fasteners that drill their own hole and thread it as they are installed. Usually only recommended for use with metal, self-drilling screws are available with wings that enable use when fastening wood to metal. The drill point length should be long enough to penetrate both materials being fastened before the threading portion reaches the material.

Features & Specs

• Drive System : External Hex
• Grade Rating : 410
• Head Type : Hex
• Screw Head Style : Hex Washer
• Screw Point Style : #3
• Thread Size : 1/4'-14
• Thread Style : Right Hand

Item details

• ASIN : B00GYKVPAO
• Brand : Small Parts
• Fastener Type : Self-Drilling Screws
• Manufacturer : Small Parts
• Model : 1412KW410
• Number Of Items : 25
• Part Number : 1412KW410
• Unit Count : 25.0 Count

Materials & Care

• Exterior Finish : Plain
• Material Type : Stainless Steel
• Metal Type : Stainless Steel

Measurements

• Fastener Size : No. 3
• Item Dimensions : 0.75 inches
• Size Name : 1/4'-14
• Thread Coverage : Fully Threaded
• Thread Size : 1/4'-14
