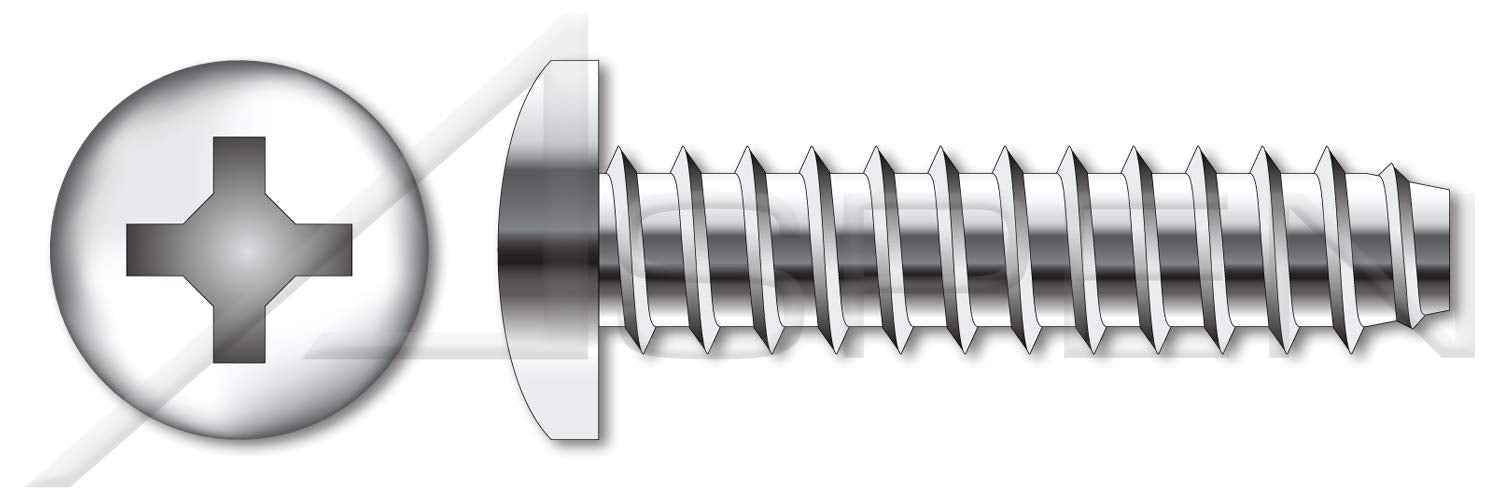

(1500 pcs) 1/4'-14 X 3/4', Self-Tapping Sheet Metal Screws, Type B, Pan Phillips Drive, Stainless Steel

Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications. Type 'B' sheet metal tapping screws feature a blunt point and fine threading. 18-8 stainless steel is functionally interchangeable with type 304 stainless steel. Stainless steel significantly improves resistance to tarnishing or corrosion.DIMENSIONAL ATTRIBUTES Diameter (Nominal): 1/4' Thread Pitch: 14 Diameter (Dimension): 0.25' Length (Nominal): 3/4'PRODUCT ATTRIBUTES Category: Self-Tapping Sheet Metal Screws System of Measurement: Inch Brand: Aspen Fasteners Form and Design: Type 'B' Head Style: Pan Head Drive Style: Cruciform Recess Drive Drive Detail: Phillips Type H Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Stainless Steel Material Grade: 18-8 Stainless Steel Coating: Uncoated Origin: Origin Undefined Standards and Specifications: ASME B18.6.3

Features & Specs

• Drive System : Phillips
• Grade Rating : 18-8 Stainless Steel
• Screw Head Style : Pan
• Screw Point Style : Type B Point
• Thread Size : 1/4'-14
• Thread Style : Right Hand

Item details

• ASIN : B07ZBPD61Q
• Brand : ASPEN FASTENERS
• Fastener Type : sheet metal screws,sheet metal tapping screws
• Item Weight : 18.75 Pounds
• Manufacturer : Aspen Fasteners
• Model : ST164-1414X34-001500
• Number Of Items : 1
• Part Number : ST164-1414X34-001500
• UPC : 692559747446
• Unit Count : 1500.0 Count

Materials & Care

• Exterior Finish : Plain
• Material Type : Stainless Steel
• Metal Type : Stainless Steel,304 Stainless Steel

Measurements

• Item Dimensions : 0.75 x 0.25 x 0.75 inches
• Item Weight : 18.75 Pounds
• Size Name : 1/4'-14 X 3/4'
• Thread Coverage : Fully Threaded
• Thread Size : 1/4'-14
