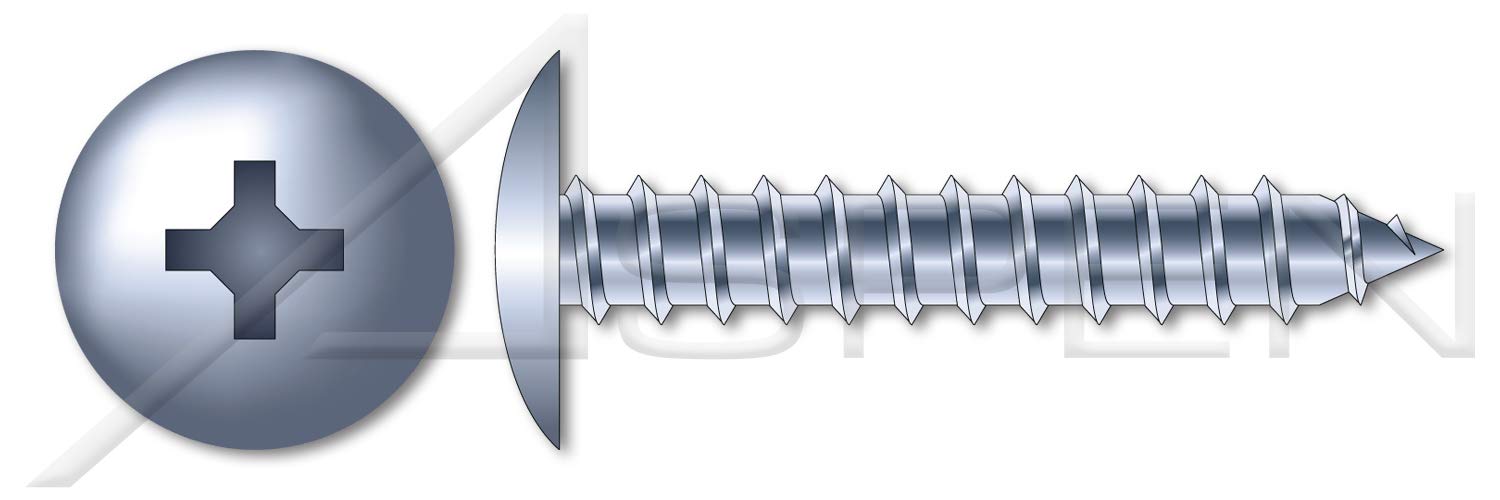

(4000 pcs) 1/4'-14 X 3/4', Self-Tapping Sheet Metal Screws, Type AB, Truss Phillips Drive, Steel, Zinc Plated

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): 1/4' | Thread Pitch: 14 | Diameter (Dimension): 0.25' | Length (Nominal): 3/4' | PRODUCT ATTRIBUTES | Category: Self-Tapping Sheet Metal Screws | System of Measurement: Inch | Brand: Aspen Fasteners | Form and Design: Type 'AB' | Head Style: Truss Head | Drive Style: Cruciform Recess Drive | Drive Detail: Phillips Type H | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Steel | Material Processes: Case Hardened | Coating: Zinc Plated | Coating Color: Clear | Hardness Rating: Rockwell C45 min. / Core=C28-C38 | Origin: Origin Undefined | Standards and Specifications: ASME B18.6.3 and SAE J933 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Drive System : Phillips
• Screw Head Style : Truss
• Screw Point Style : Type AB Point
• Thread Size : 1/4'-14
• Thread Style : Right Hand

Item details

• ASIN : B016VCNRX2
• Brand : ASPEN FASTENERS
• Fastener Type : sheet metal screws,sheet metal tapping screws
• Item Weight : 48.4 Pounds
• Manufacturer : Aspen Fasteners
• Model : XAMSC424-14X34-004000
• Number Of Items : 1
• Part Number : XAMSC424-14X34-004000
• UPC : 698435417854
• Unit Count : 4000.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Steel
• Metal Type : Zinc,Steel

Measurements

• Item Dimensions : 0.75 x 0.25 x 0.75 inches
• Item Weight : 48.4 Pounds
• Size Name : 1/4'-14 X 3/4'
• Thread Coverage : Fully Threaded
• Thread Size : 1/4'-14
