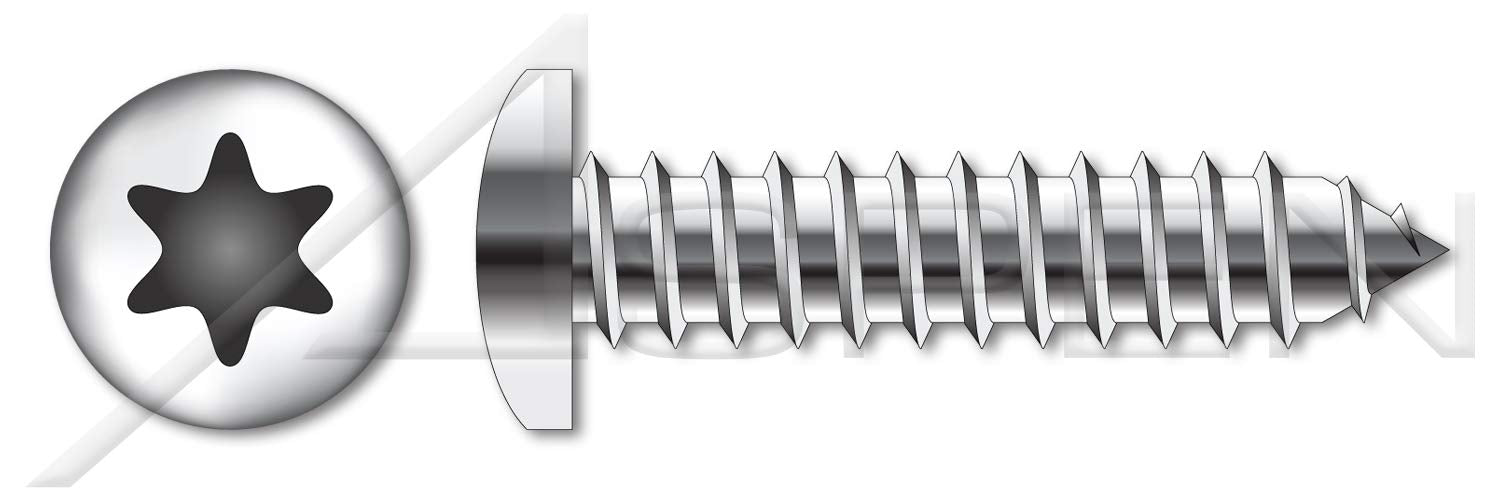

(2500 pcs) #12-14 X 3/4', Self-Tapping Sheet Metal Screws, Type AB, Pan 6Lobe Torx(r) Drive, Stainless Steel

Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications. Type 'AB' sheet metal tapping screws feature a sharp point and fine threading. A 6-lobe recess is also known as a hexalobular internal drive. 18-8 stainless steel is functionally interchangeable with type 304 stainless steel. Stainless steel significantly improves resistance to tarnishing or corrosion.DIMENSIONAL ATTRIBUTES Diameter (Nominal): #12 Thread Pitch: 14 Diameter (Dimension): 0.2188' Length (Nominal): 3/4'PRODUCT ATTRIBUTES Category: Self-Tapping Sheet Metal Screws System of Measurement: Inch Brand: Aspen Fasteners Form and Design: Type 'AB' Head Style: Pan Head Drive Style: 6Lobe Drive Drive Detail: Torx® Generic Alternative Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Stainless Steel Material Grade: 18-8 Stainless Steel Coating: Uncoated Origin: Origin Undefined Standards and Specifications: ASME B18.6.3

Features & Specs

• Drive System : Torx
• Grade Rating : 18-8 Stainless Steel
• Head Type : Pan
• Screw Head Style : Pan
• Screw Point Style : Type AB Point
• Thread Size : #12-14
• Thread Style : Right Hand

Item details

• ASIN : B07ZBPJSXB
• Brand : ASPEN FASTENERS
• Fastener Type : self-tapping,sheet metal screws,sheet metal tapping
• Item Weight : 20.63 Pounds
• Manufacturer : Aspen Fasteners
• Model : ST169-N1214X34-002500
• Number Of Items : 1
• Part Number : ST169-N1214X34-002500
• UPC : 692559747927
• Unit Count : 2500.0 Count

Materials & Care

• Exterior Finish : Plain
• Material Type : Stainless Steel
• Metal Type : Stainless Steel

Measurements

• Fastener Size : No. 12
• Item Dimensions : 0.75 x 0.22 x 0.75 inches
• Item Weight : 20.63 Pounds
• Size Name : #12-14 X 3/4'
• Thread Coverage : Fully Threaded
• Thread Size : #12-14
