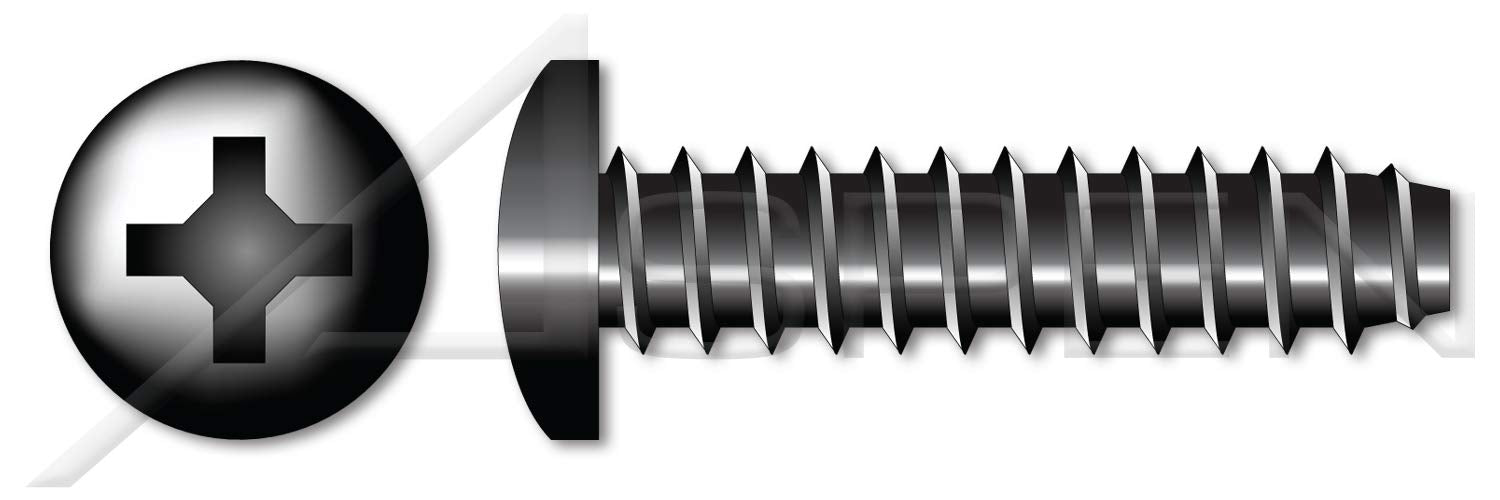

(5000 pcs) #12-14 X 3/4', Self-Tapping Sheet Metal Screws, Type B, Pan Phillips Drive, Steel, Black Oxide

Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications. Type 'B' sheet metal tapping screws feature a blunt point and fine threading.DIMENSIONAL ATTRIBUTES Diameter (Nominal): #12 Thread Pitch: 14 Diameter (Dimension): 0.2188' Length (Nominal): 3/4'PRODUCT ATTRIBUTES Category: Self-Tapping Sheet Metal Screws System of Measurement: Inch Brand: Aspen Fasteners Form and Design: Type 'B' Head Style: Pan Head Drive Style: Cruciform Recess Drive Drive Detail: Phillips Type H Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Steel Material Processes: Case Hardened Coating: Oxidized Coating Color: Black Hardness Rating: Rockwell C45 min. / Core=C28-C38 Origin: Origin Undefined Standards and Specifications: ASME B18.6.3 and SAE J933

Features & Specs

• Drive System : Phillips
• Head Type : Pan
• Screw Head Style : Pan
• Screw Point Style : Type B Point
• Thread Size : #12-14
• Thread Style : Right Hand

Item details

• ASIN : B07ZBMQ674
• Brand : ASPEN FASTENERS
• Fastener Type : sheet metal screws,sheet metal tapping screws
• Item Weight : 40.5 Pounds
• Manufacturer : Aspen Fasteners
• Model : SC385-N1214X34-005000
• Number Of Items : 1
• Part Number : SC385-N1214X34-005000
• UPC : 692559735917
• Unit Count : 5000.0 Count

Materials & Care

• Exterior Finish : Black Oxide
• Material Type : Steel
• Metal Type : Steel

Measurements

• Fastener Size : No. 12
• Item Dimensions : 0.75 x 0.22 x 0.75 inches
• Item Weight : 40.5 Pounds
• Size Name : #12-14 X 3/4'
• Thread Coverage : Fully Threaded
• Thread Size : #12-14
